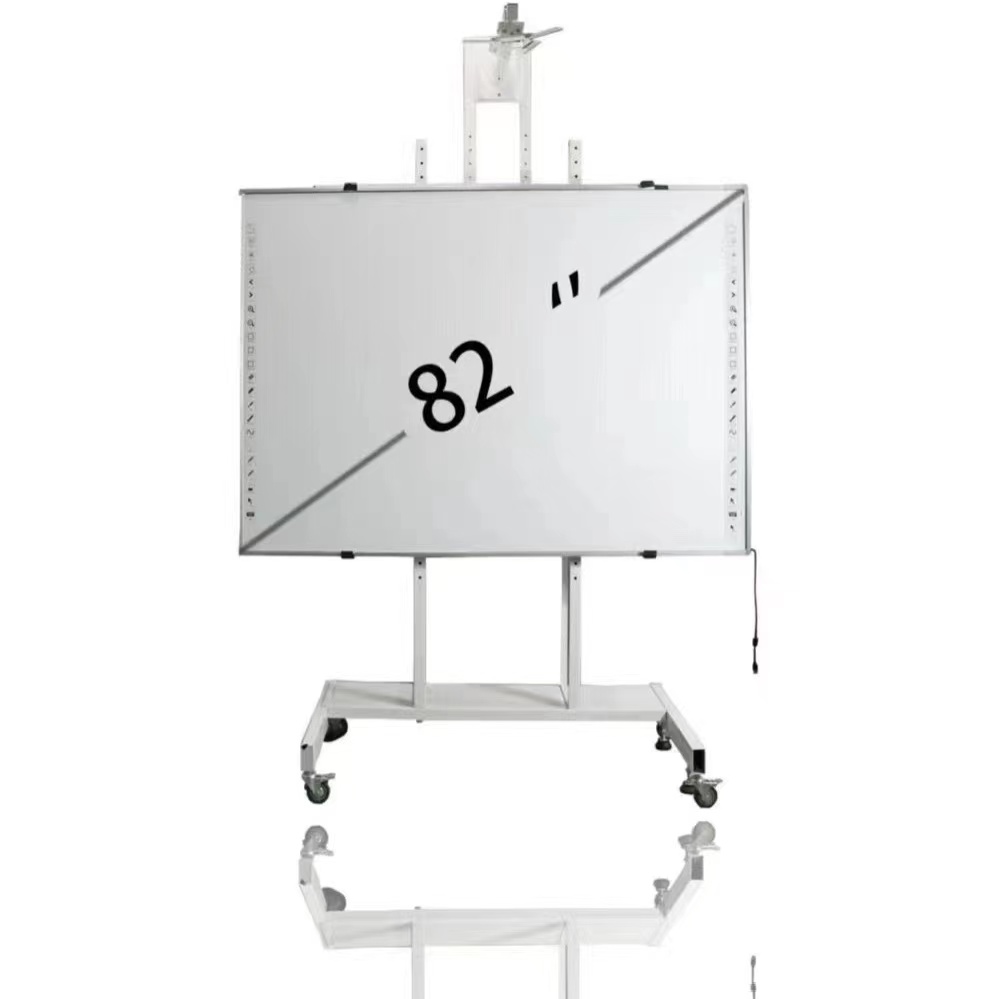

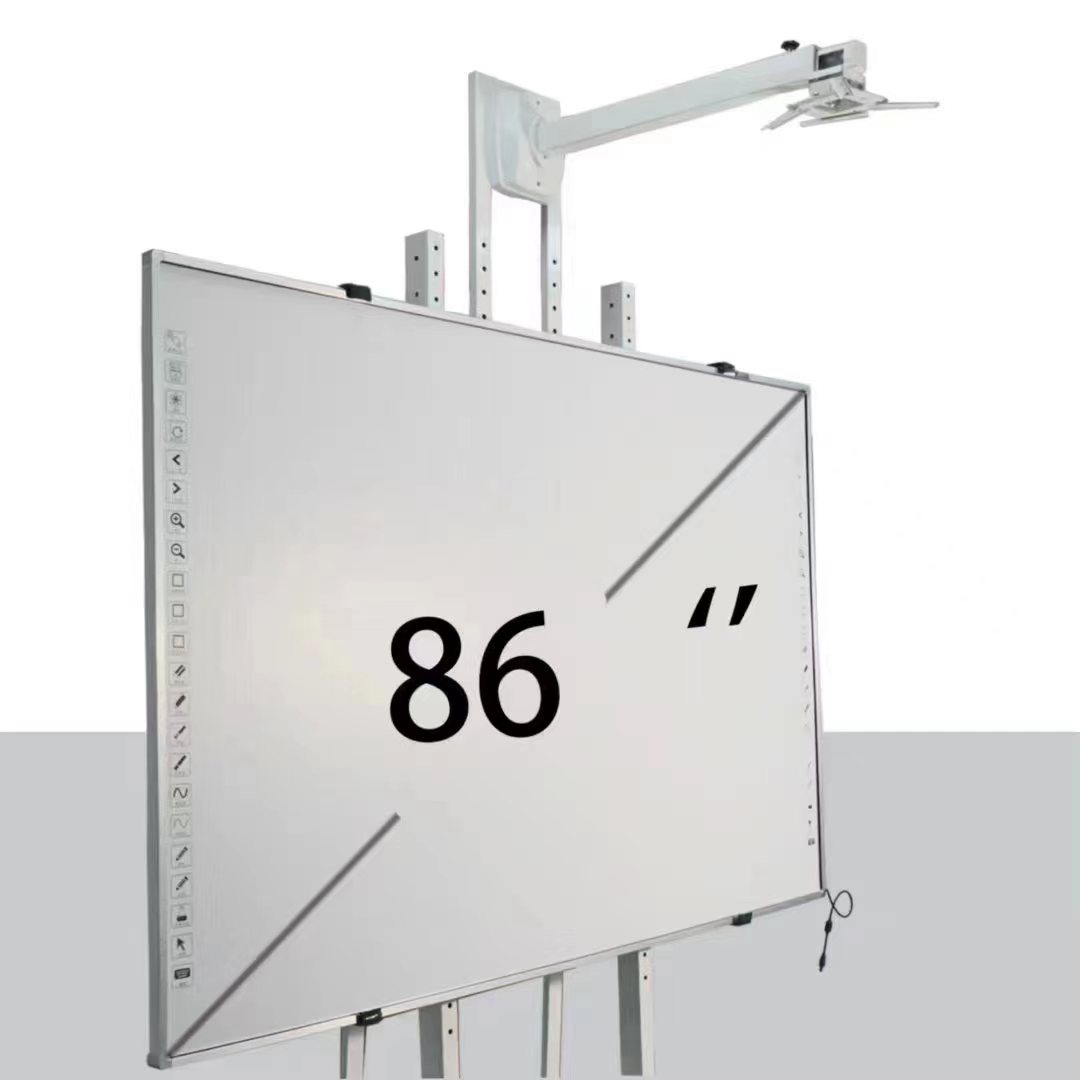

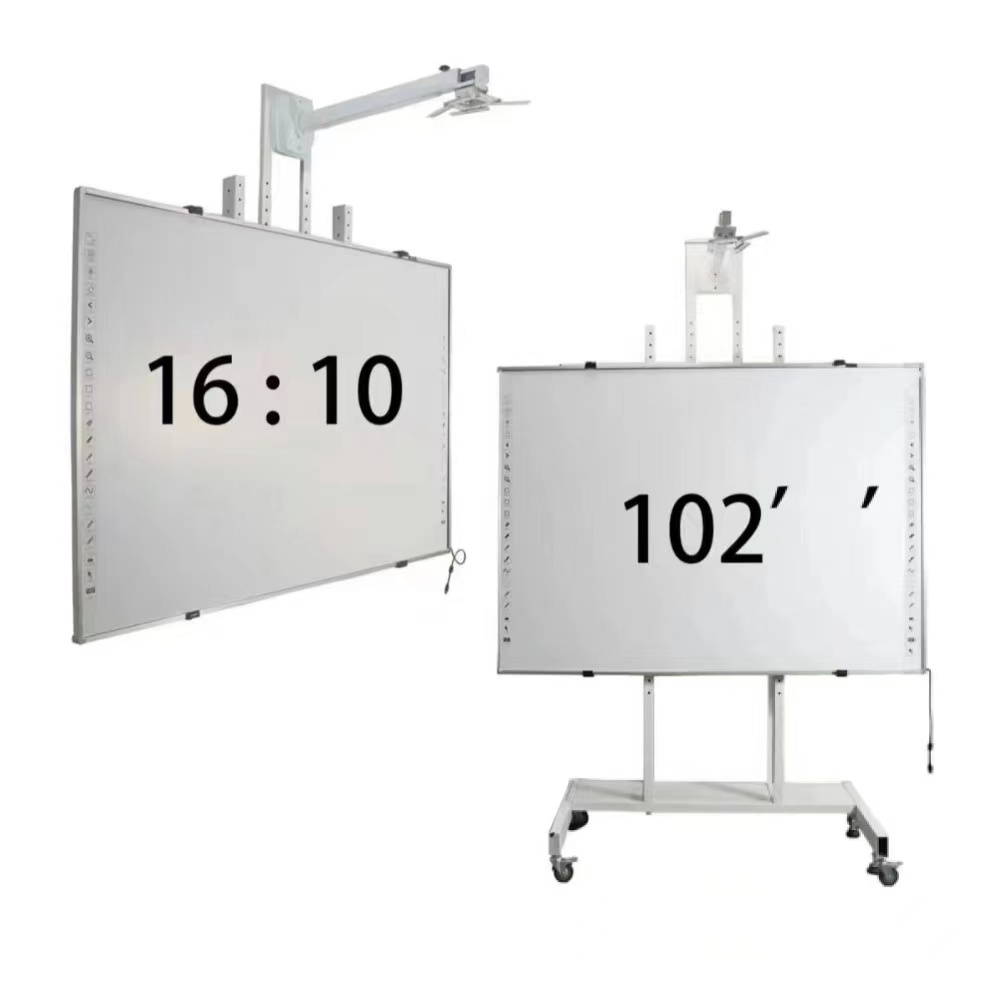

Interactive Whiteboard optional 82/86/106 for School
Key Features
*Crash-proof, scratch-proof, EMI, lower reflection, anti-dust,anti-glare and waterproof.
*Touch Technology: infrared, touch by finger or any non-transparent objects,
enhancing human-computer interaction experience.
*Drive free, Plug and Play.
*Resolution: ≥ 32767*32767.
*Touch accuracy: ≤ 1mm;
*Response speed: ≤ 4ms
*The board uses integrated moduler design with four corners of the PVC button buckle with structural design, without any screws fixed.
*The core electronic components using pre-demolition of the way
Products Specifications
| Outline | OD Size | (1783±2.0) mm*(1273±2.0) mm |
| Touch Size | (1739.4±2.0) mm*(1229.4±2.0) mm | |
| Project Size | (1656.6±2.0) mm*(1229.4±2.0) mm | |
| PS/OD | 95% | |
| Ratio | 4:3 | |
| Keys | Each side 11 keys, in total 22. | |
| Material | Aluminum alloy | |
| Color | Silver | |
| Panel | Plastic | |
| Interface | A type USB*1 | |
| Touch | Points | Max：Driver-free10Pts |
| Technology | IR Touch | |
| Resolution | 32768x32768 | |
| Speed | ≤10ms | |
| Accuracy | 4mm*4mm | |
| Scan | ≥100 frames | |
| Support system | Win7、Win 8、Win10、Windows XP 、Mac OS | |
| Machine | N.W | （15±2）kg |
| G.W | （19±2）kg | |
| Packing | （1850±4.0）mm*（1335±4.0）mm *（70±4.0）mm | |
| Temperature | Working：-10℃～50℃
Storage：-20℃～60℃ |
|
| Anti-light | 10000Lux |
