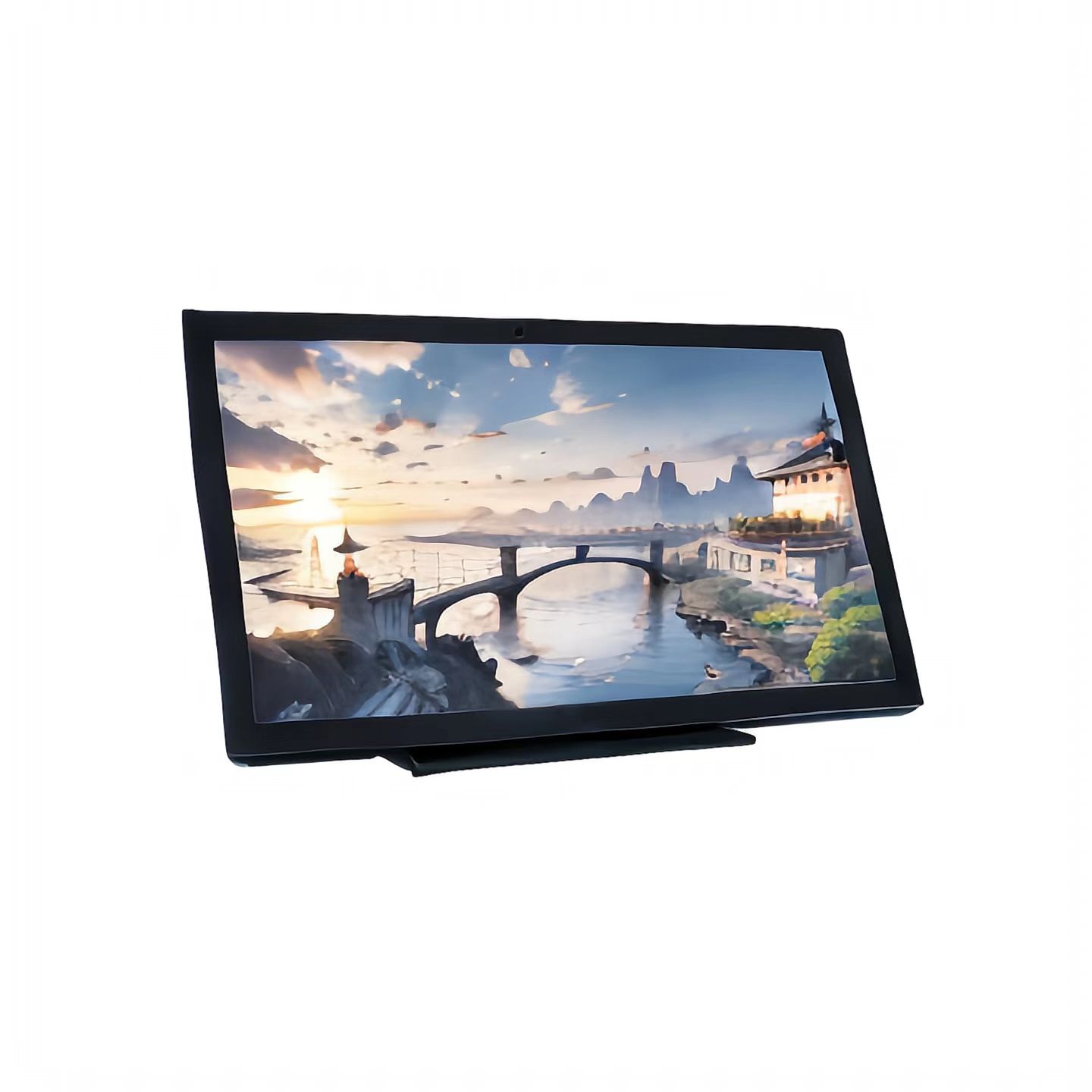

Interactive digital pen Graphic Tablet NS2150
Key Features
1. Designer drawing on graphic tablet in home office.
Creative design and working concept.
2.Artist creative designer hands sketching of screens for mobile responsive
website development with UI/UX.
3.Developing wireframe sketch layout design mockup on smartphone screen.
Products Specifications
| Display Specification ： | |
| Display type | IPS |
| Screen size | 21.5 inch |
| Resolution | 1920*1080 |
| Contrast (Typical) | 1000:1 (typ) |
| Brightness | LED light 200cd/㎡ |
| Response time | 10ms |
| Angle of view | 178(89/89) / 178(89/89) (Typ) |
| support color | 16.7M |
| LED life | 15000 hours |
| interface | USB |
| Writing Spec ： | |
| touch mode | Battery-free Electromagnetic Resonance |
| Electromagnetic technology | Passive wireless technology |
| Pen resolution | 5080LPI |
| Pen pressure | 8192 levels |
| Report speed | 266PPS |
| Sensing accuracy | ±0.25mm |
| Pen tilt angle | ±45° |
| Induction height | 10mm |
| Digital screen terminal interface | USB |
| compatible operating system | Windows 7 or above, Mac OS X 10.10 or above |
Key Features
1. 10MP ultra high definition image quality.
10.0 megapixel images and excellent video quality.
2. Multiple scanning or make interactive presentations One touch scanning click to capture and scan books, documents,receipts, ID card, Passport, images,magazines, QR codes, OCR text, real-objects or make interactive live streaming presentations.
3. Powerful OCR Functions makes work high-efficiency.
OCR functions Support 180 languages. It can transfer scanning images into editable documents to Word, Excel, TXT, PDF format in color and gray which makes work high efficiency.
4. Versatile Office Scanning Solutions Software.
Versatile office scanning software including one second scan, automatic scanning, auto-cropping,video recording, Zoom, Rotate,remove background,One-click PDF ,Images edit,OCR functions and etc.
5. Support Multi-browser SDK API and TWAIN Driver.
Camera Scanners supporting Java, C#, VC++, VB, and other mainstream languages. Provide Multi-browser SDK API or twain driver or customized request for second development in various industry applications.
Products Specifications
| Appearance | Mechanic design |
| Model | NS600 |
| Image sensor | 10 Mega pixels |
| Resolution | 3648*2736 |
| Capture size | A4/ A3/ Cards |
| Speed | 1S |
| Sensor | HD CMOS, without driver |
| Focus | Auto focus |
| Supplement light | Natural+ LED Supplement light |
| Transfer Mode | USB 2.0 faster data transfer |
| Doc format | PDF/ WORD/ TXT |
| Image format | JPG/ PDF/ TIF/ BMP/ TGA/ PCX/ PNG/ RAS |
| OCR files format | WORD/EXCEL/TXT |
| Video format | AVI/ WMV |
| Interface | USB 2.0 |
| OCR | More than 180 kinds of languages |
| Warranty | 12 Months |
| System Support | Windows XP, Vista, Win7, Win8, Win10,Mac |
| Image Processing | Brightness, Contrast, Sharpness, Saturation, Gamma, Rotation, Mirroring, etc |
| Package Contents | Visualizer(Document Camera), CD-ROM, Presentation Pad, USB-cable, Users Manual |
