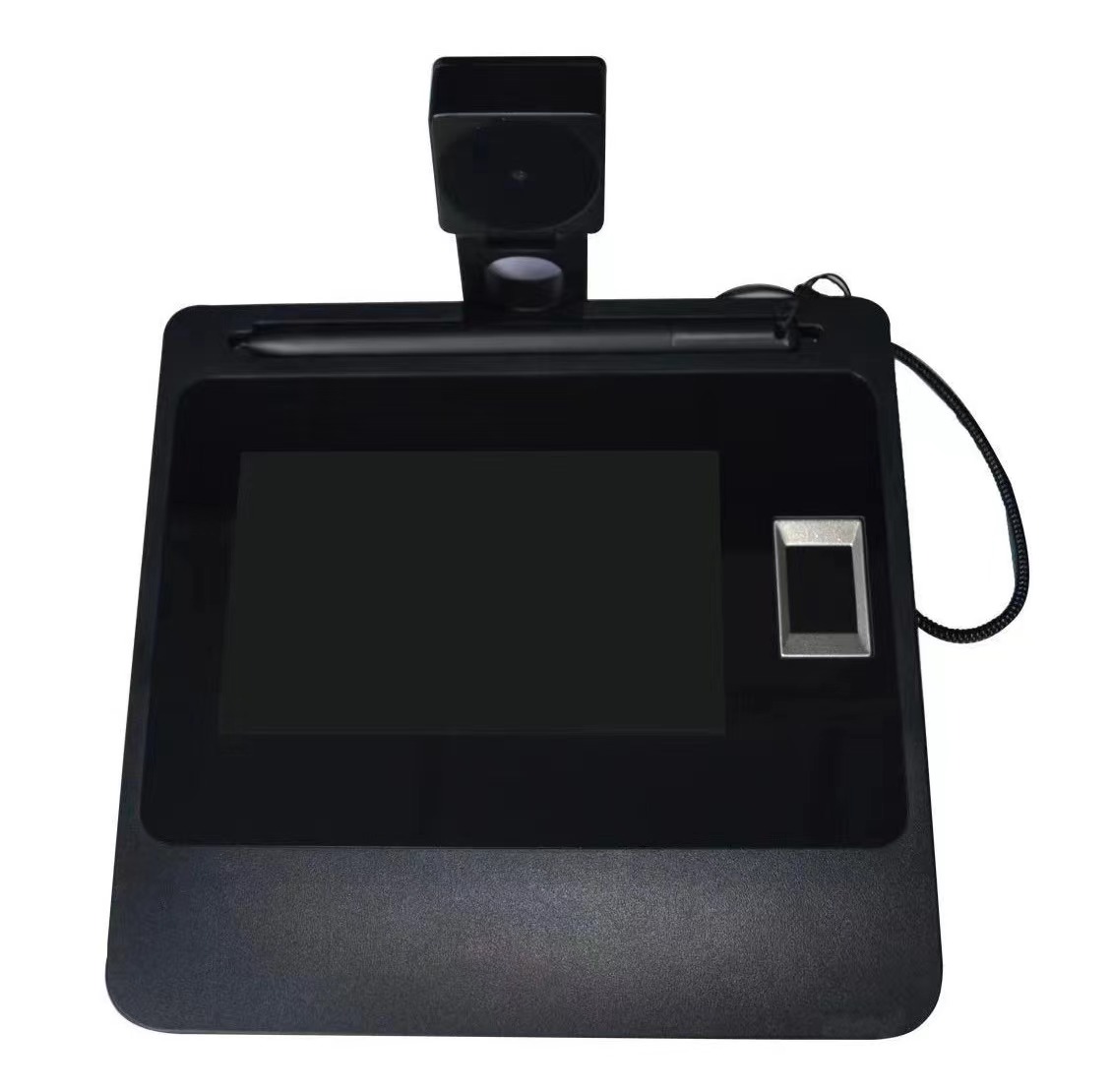

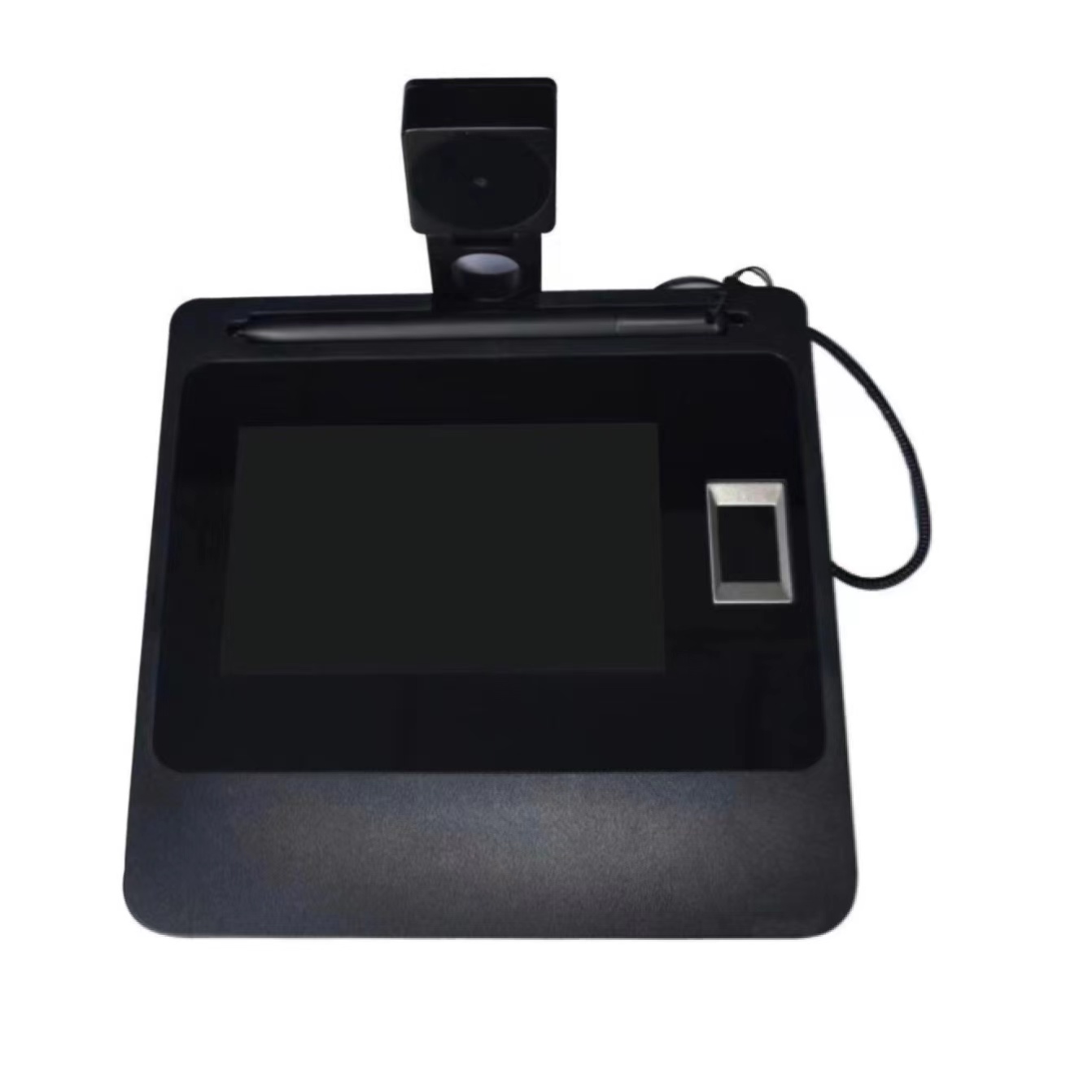

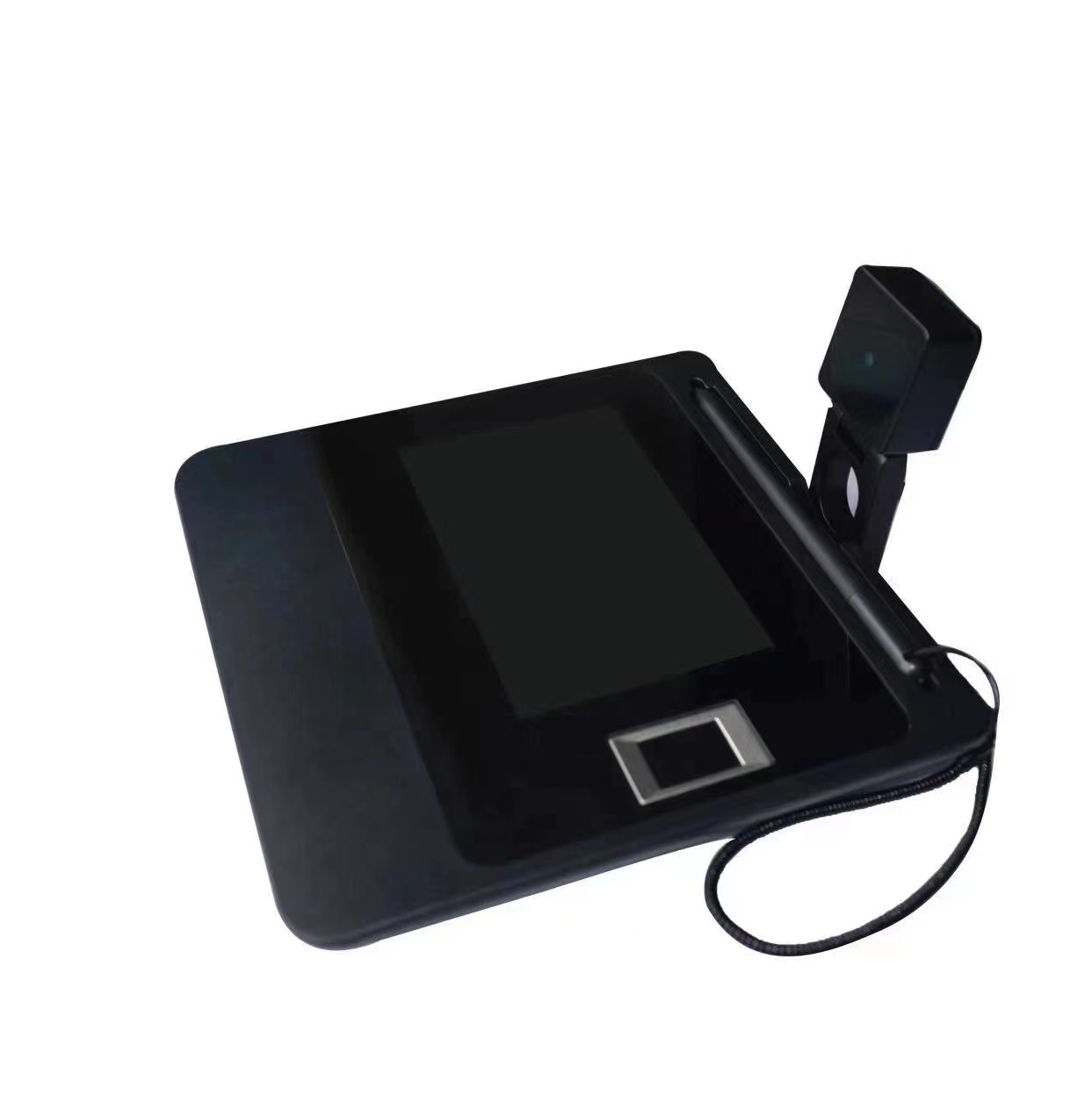

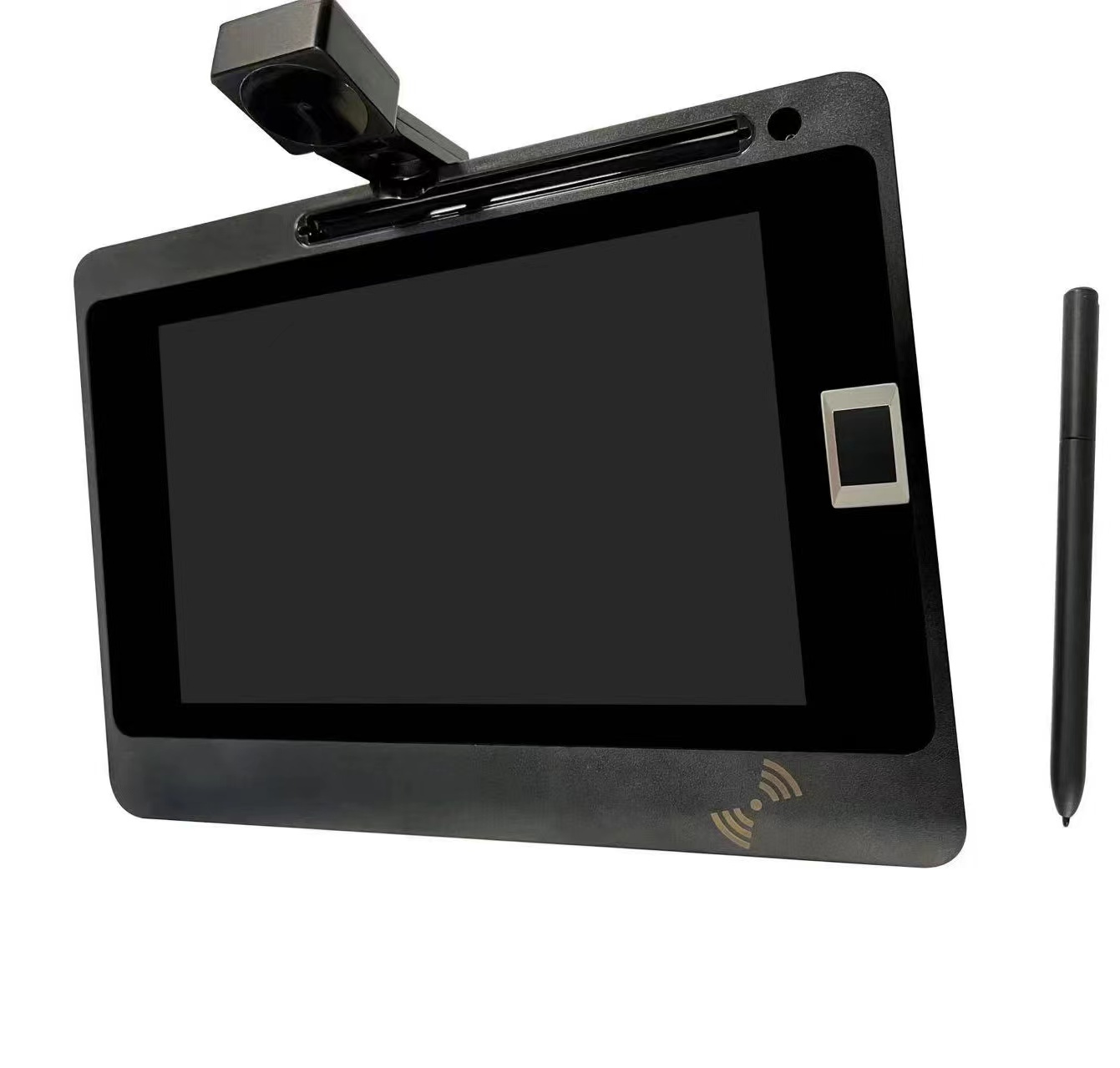

Digitization Signature Pad NP101CS with camera
Key Features
1. 2048/4096/8192 Pressure Level
2. Support Multi-system
3. USB connections for convenient operation
4. 10.1 inch Professional Signature Pad with camera optional
5. Slim, Compact and Ultra-portable design for take anywhere you want.
Products Specifications
|
Panel Description |
|
| Panel Size | 10.1 Inch |
| Panel Type | IPS LCD |
| Display Ratio | 16:9 |
| Active Area | 108.0(W) × 64.8(H) mm |
| Pixels | 1280*800 |
| Pixel Pitch | 0.045(W) ×0.135(H) mm |
| White Luminance（TYP） | 200cd/m² |
| Response Time | 8ms |
| Contrast Ratio | 500:1 |
| Viewing Angle | 50/70/70/70（Up/Down/Left/Right）@CR≥10 |
|
Touch Description |
|
| Touch Technology | Electromagnetic Resonance Without Battery |
| Resolution | 2540LPI |
| Pressure Level | 2048/4096/8192 optional |
| Report Rate | 200pps |
| Accuracy | ±0.5mm（Center），±1mm（Edge） |
| Tilt Angle | ±45°from Vertical |
| Sensor Height | 5-15mm |
| Interface | USB |
| Support OS | WinXP、Vista、Win7 、Win8、MAC |
|
Pen Description |
|
| Type | Wireless Pen without Battery |
| Press Key | Upper Key（Mouse Right-Key Function） |
| Pen Tip | Switch Freely |
| Weight | 10g |
|
Power Supply |
|
| Power Supply Type | USB 5V |
| Power Consumption | 4W |
|
Interface |
|
| Video Input | USB 2.0*1 |
|
Others |
|
| Dimension | 290(L)*210(W)*18(H)mm |
| Net Weight | 0.2KG |
| Gross Weight | 0.35KG |
| Working Temperature | 0~65℃ |
| Working Humidity | 20~80% |
| Storage Temperature | -10~80℃ |
| Storage Humidity | 10~90% |
