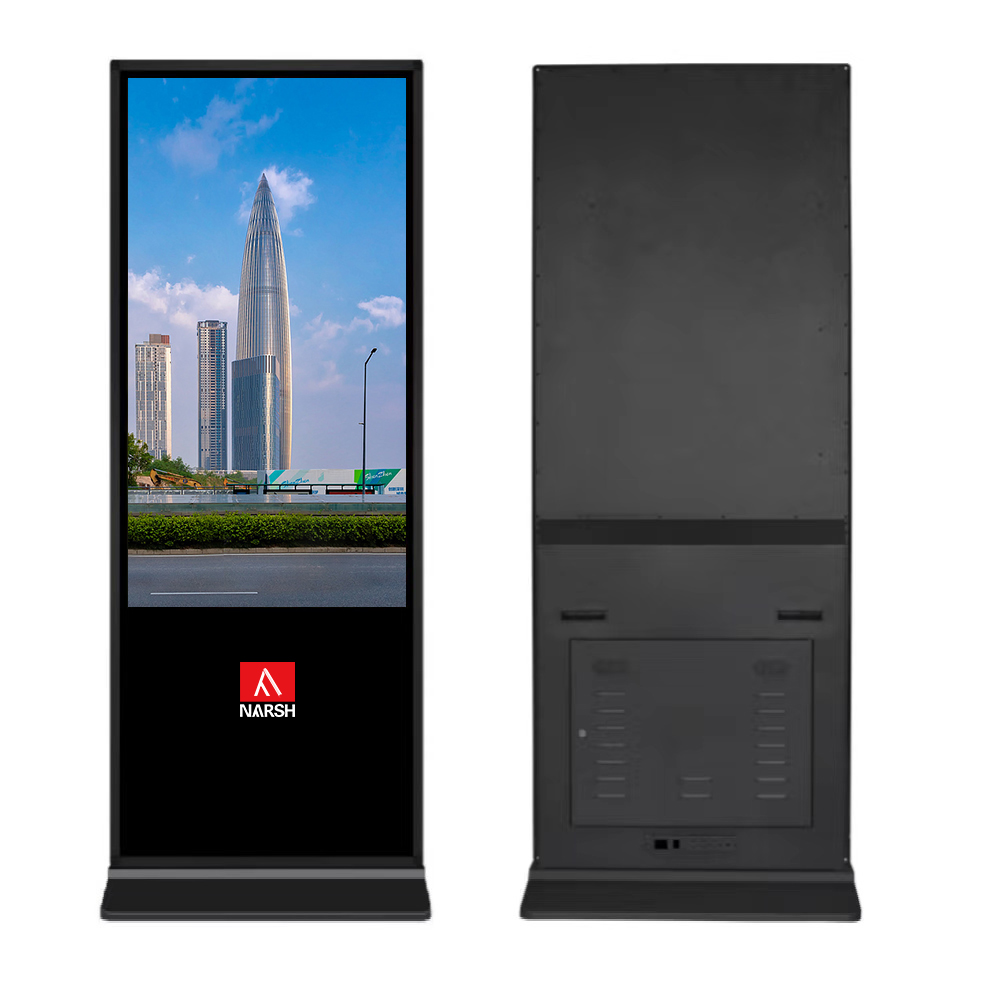

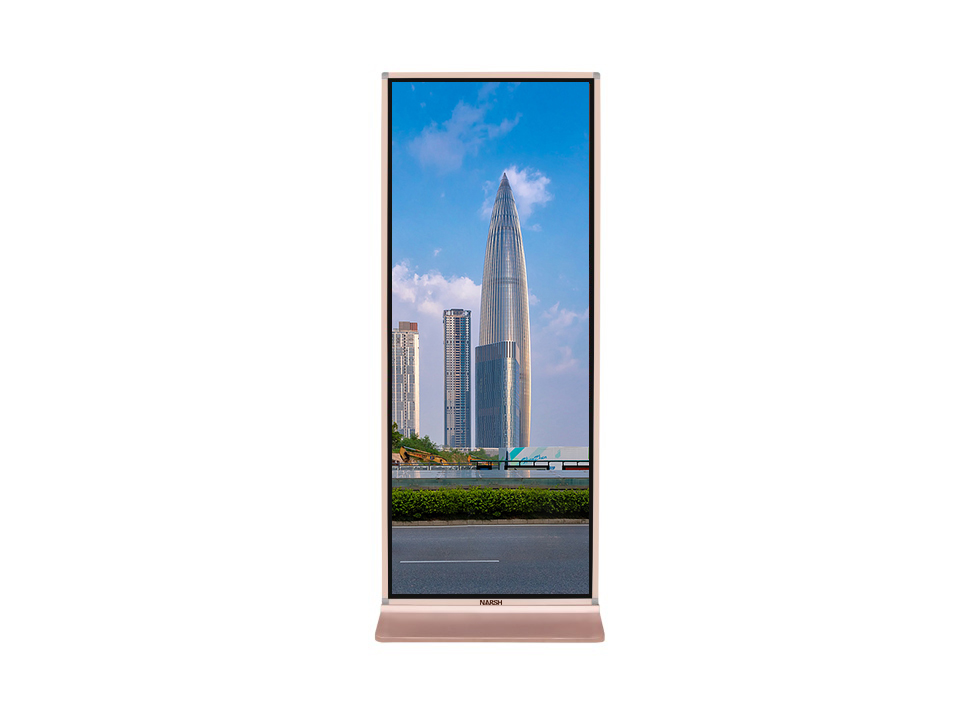

Customized Digital Display Signage

Customized Digital Display Signage Featured Image
  • Customized Digital Display Signage
  • Customized Digital Display Signage

Application:

Book Scanners is widely applied in various kind of industries professional for Banking,Security, Telecom, Government Office, Enterprise, Hospitals, education and etc

Product Detail

Product Tags

Key Features

1.Support windows & Android system

2.Support touch screen

3.Can customized build camera

and customized any design for OEM ODM

Products Specifications

Infrared touch Digital display parameters
1 Dimension 43inch 49inch 55inch 65inch 75inch 85inch
2 Area 941(W)×530(H) mm 1074(W)×604(H) mm 1210(W)×681(H) mm 1429(W)×804(H) mm 1650(W)×928(H) mm 1872(W)×1053(H) mm
3 Aspect Ratio 16:09 16:09 16:09 16:09 16:09 16:09
4 Luminance 280-350cd/㎡ 280-350cd/㎡ 280-350cd/㎡ 280-350cd/㎡ 280-350cd/㎡ 280-350cd/㎡
5 Contrast 1200:01:00 1200:01:00 1200:01:00 1200:01:00 1200:01:00 3000:01:00
6 Display Color 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M
7 Viewing angle 178°(V)/178°(H) 178°(V)/178°(H) 178°(V)/178°(H) 178°(V)/178°(H) 178°(V)/178°(H) 178°(V)/178°(H)
8 Resolution 1920*1080 1920*1080 1920*1080 1920*1080 3840*2160 3840*2160
9 Life (hrs) 60000(hrs) 60000(hrs) 60000(hrs) 60000(hrs) 60000(hrs) 60000(hrs)
10 Touch 10-Point Infrared touch 10-Point Infrared touch 10-Point Infrared touch 10-Point Infrared touch 10-Point Infrared touch 10-Point Infrared touch
11 Response speed ＜15ms ＜15ms ＜15ms ＜15ms ＜15ms ＜15ms
12 Size(mm) 1780.5*602.4*43.8mm 1830.5*672.5*43.8mm 1880.5*757*43.8mm 2000.5*886*43.8mm 2000*1004.9*68.5mm 2100.1*1154.1*68.5mm
13 Weight(KG) 41.5KG 52KG 58KG 68KG 85KG 98KG
14 Frame Aluminum alloy oxidized brushed frame, metal sprayed metal cold-rolled steel plate
15 Color Silver/Black/White/Gold Silver/Black/White/Gold Silver/Black/White/Gold Silver/Black/White/Gold Silver/Black/White/Gold Silver/Black/White/Gold
16 System CPU：RK3288 quad-core  2G+8G
RAM :2GB optional 4G
Internal Memory: 16GB optional 32GB
Operation system: Android 7.1/10.0
